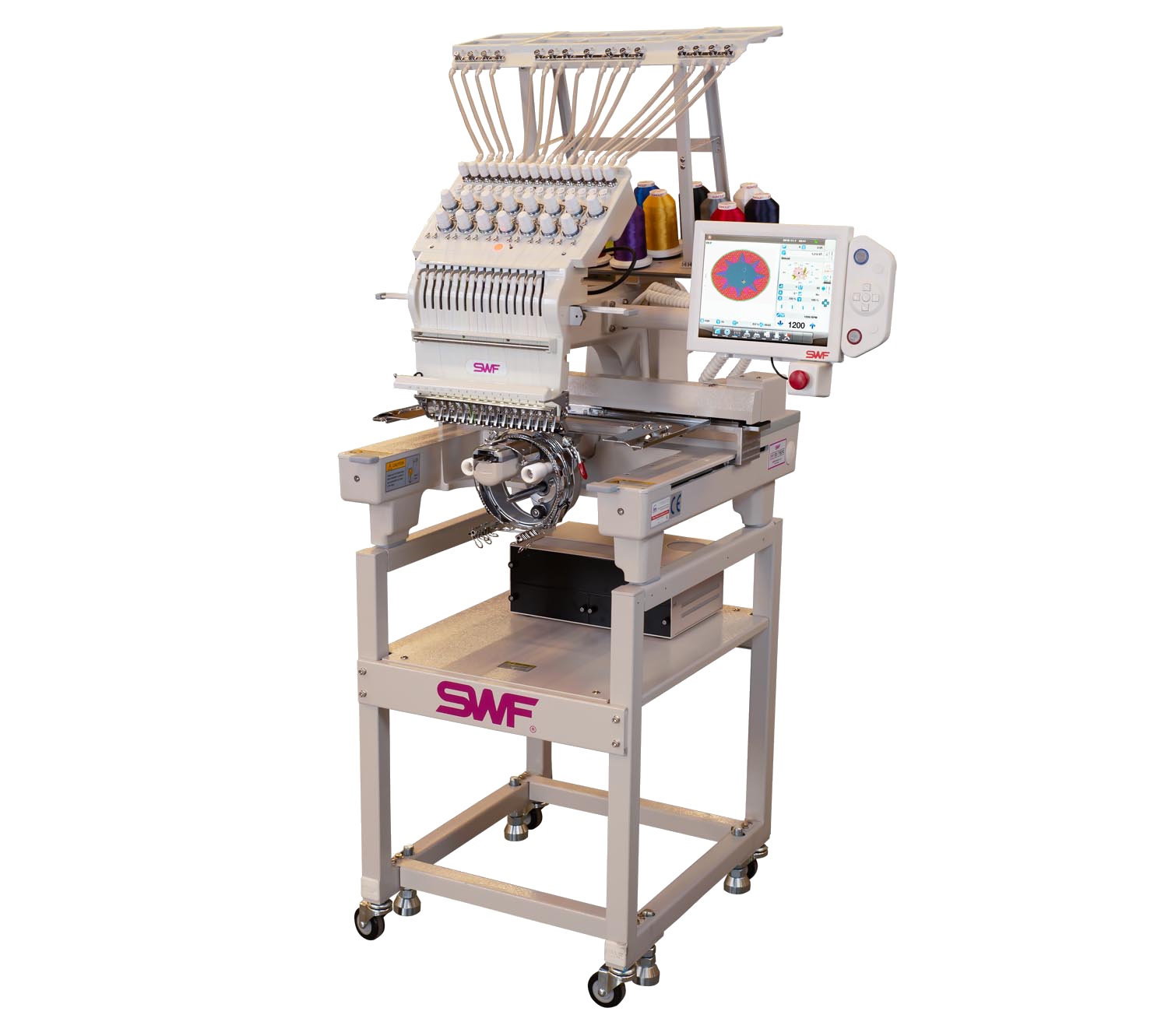

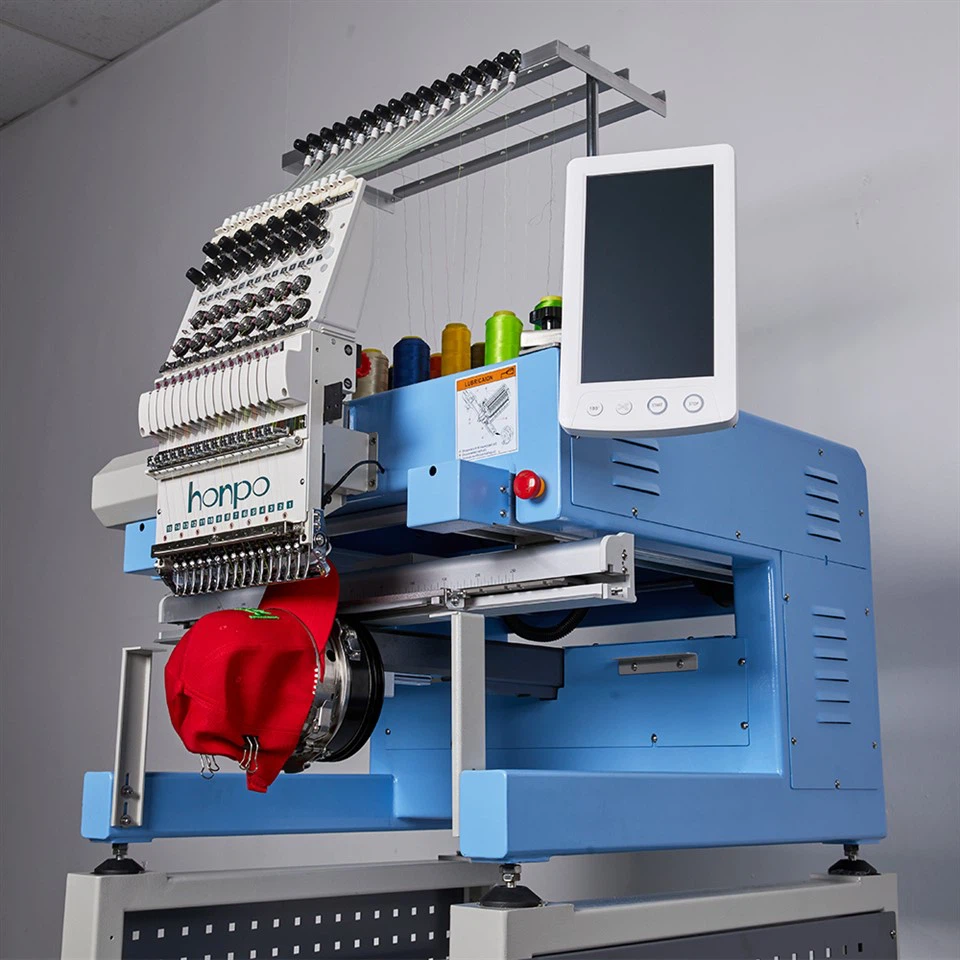

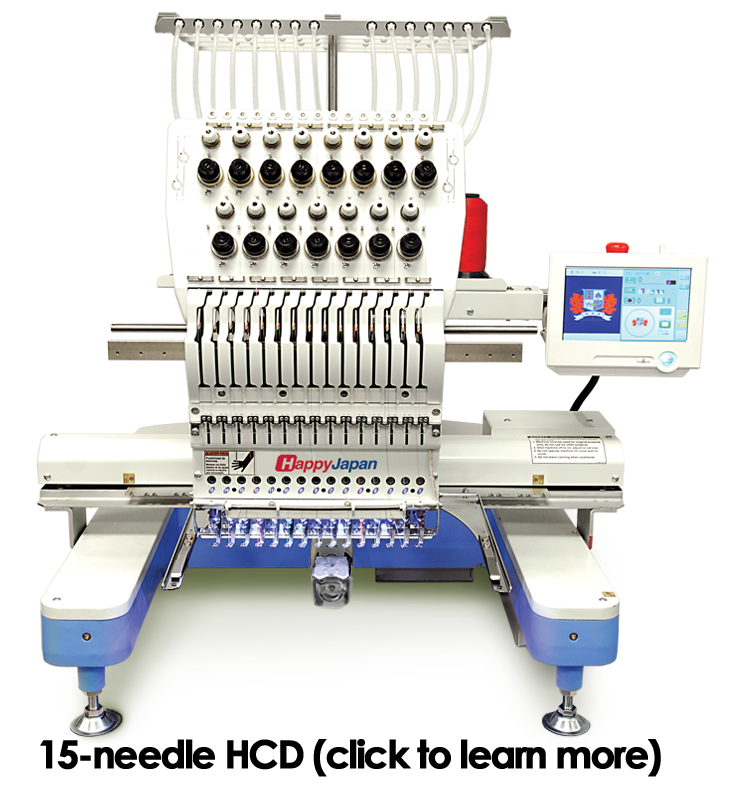

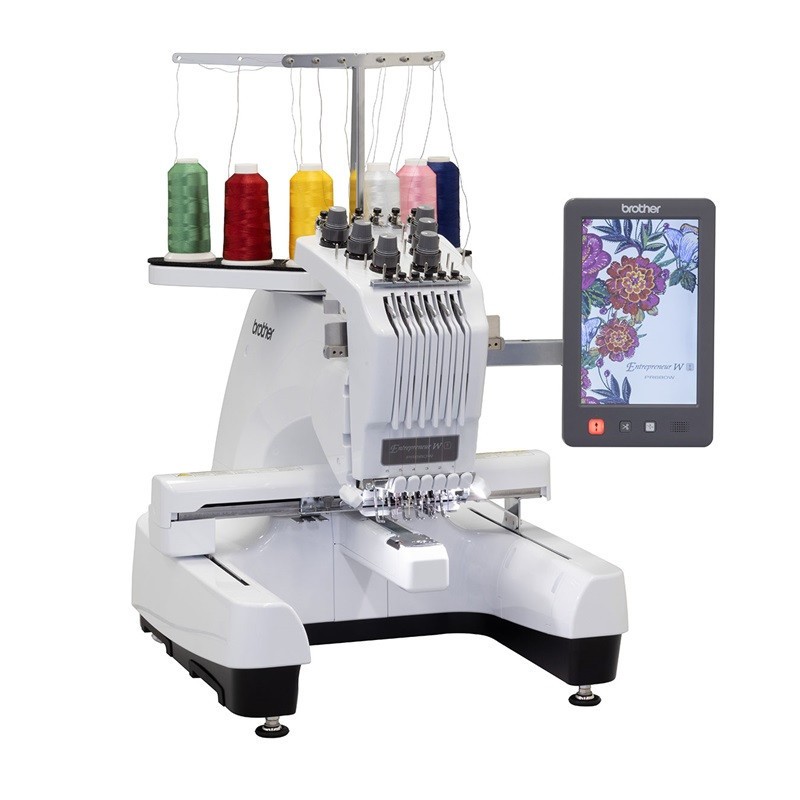

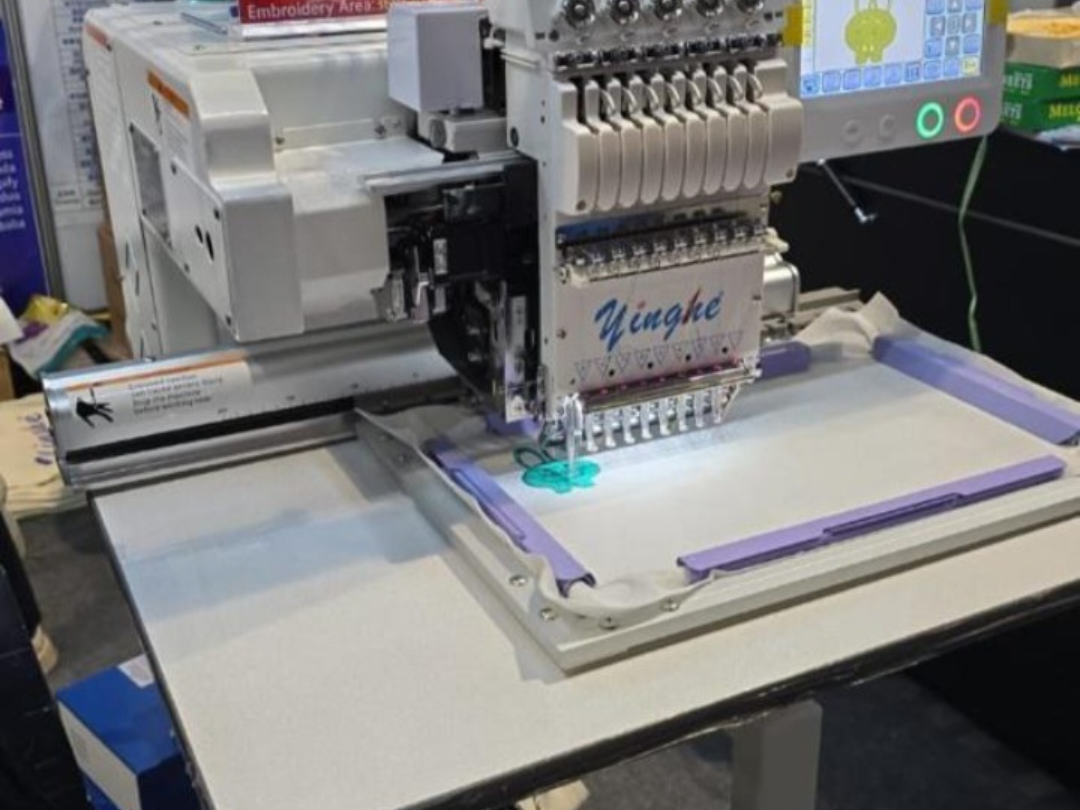

Single head embroidery machine

A single head embroidery machine is a computerized device designed to automate intricate embroidery patterns onto fabrics, garments, or accessories. It features one independent embroidery unit (“head”), making it ideal for small-scale production, customization, or detailed work. Below is a detailed breakdown:

Key Components

1. Embroidery Head: The core unit housing the needle, thread tensioners, and thread trimmer. It moves vertically to stitch designs.
2. Hoop/Frame: Holds fabric taut during stitching. Interchangeable hoops accommodate different design sizes (e.g., 4×4 inches to 12×12 inches).
3. Needle Assembly: Drives needles (typically 1–15 needles) to stitch thread into the fabric. Automatic needle threading may be included.
4. Thread System: Multiple thread cones (up to 15 colors) feed into the machine, with automatic color-changing capabilities for multi-color designs.
5. Control Panel: Touchscreen interface to upload designs, adjust settings (stitch speed, tension), and monitor progress.
6. Drive Mechanism: Stepper/servo motors move the hoop precisely in X-Y directions to follow the digitized design.
7. Software Integration: Reads digitized files (e.g., .pes, .dst) created via embroidery software, which maps stitch types, colors, and paths.

Working Mechanism

1. Design Input: A digitized file is loaded via USB or network.
2. Fabric Setup: Material is secured in the hoop and mounted under the needle.
3. Stitching Process: Motors move the hoop while the needle rapidly stitches (500–1,500 stitches per minute). Automatic thread trimmers cut threads between color changes.
4. Completion: The finished design is unhooped, and excess stabilizer is removed.

Applications

• Apparel: Logos on shirts, jackets, or uniforms.
• Accessories: Hats, bags, shoes.
• Home Décor: Embroidered pillows, table linens.
• Custom Art: Personalized gifts, patches, or intricate artwork.

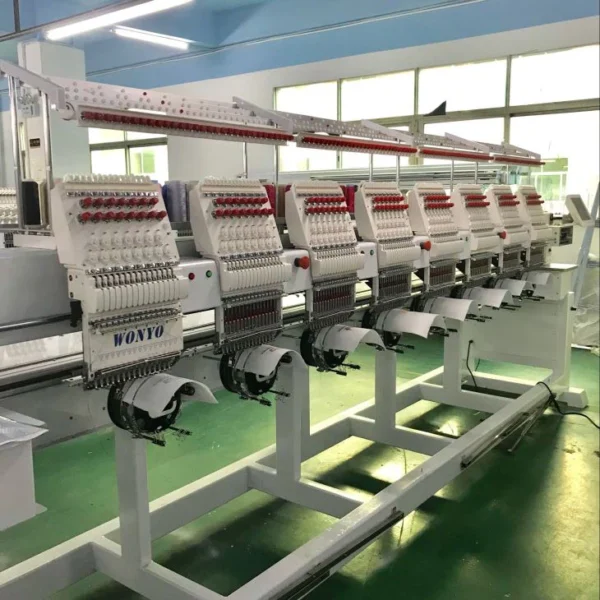

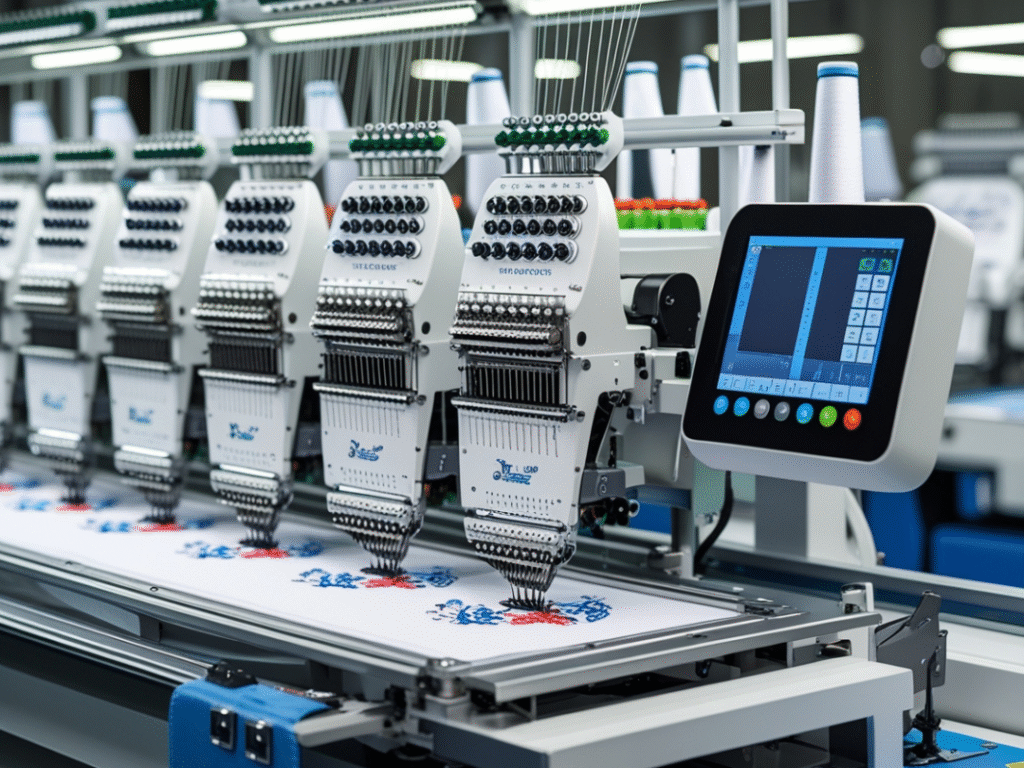

Advantages vs. Multi-Head Machines

• Cost-Effective: Lower upfront cost and space requirements.
• Flexibility: Ideal for small batches, custom orders, or complex designs.
• Ease of Use: Simplified maintenance and operation for individual users.

Key Features

• Automatic Functions: Thread trimming, color changes, and tension adjustment.
• Sensor Alerts: Detects thread breaks or needle issues.
• Versatility: Handles diverse materials (denim, leather, stretch fabrics) with adjustable presser feet.

Maintenance & Safety

• Regular cleaning of lint, oiling moving parts, and needle replacement.
• Safety guards and emergency stop buttons prevent accidents.

Accessories

• Additional hoops, specialty frames (e.g., cap hoops), stabilizers, and thread stands.

Single head machines balance precision and affordability, making them a staple for small businesses, hobbyists, and designers prioritizing quality over high-volume output.
